Three Phase Hybrid Inverter Balcony Solar Energy Storage Battery Energy Storage System

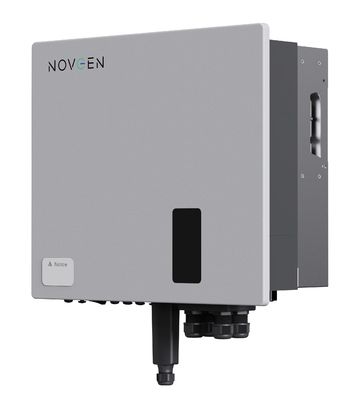

Large Image : Three Phase Hybrid Inverter Balcony Solar Energy Storage Battery Energy Storage System

Product Details:

Place of Origin:	China
Brand Name:	NOVGEN
Certification:	CE
Model Number:	T3EU

Payment & Shipping Terms:

Minimum Order Quantity:	Negotiation
Price:	Negotiation
Packaging Details:	Standard Packaging

Contact Now

Detailed Product Description

Max. Input Voltage:	1100 V	Min. Input Voltage / Start Voltage:	60 V / 250 V
Max. Input Current Per MPP Tracker:	16 A	Max. Short-circuit Current Per MPP Tracker:	24 A
Battery Voltage Range:	120 V To 600 V	Battery Type:	LiFePO4
Max. Switch Time:	< 10 Ms	Output THDv (@ Linear Load):	2%
MPPT Efficiency:	99.9 %	Weight:	26 Kg
Operating Temperature Range:	-25 °C~+60 °C	Protection Level:	IP66
Highlight:	three phase hybrid inverter balcony , hybrid three phase solar inverter , balcony three phase solar inverter

The NOVEGN Three Phase Hybrid Inverter is tailored for residential energy storage systems. It offers flexible power options, including:
1. Inverters ranging from 5kW to 12kW with 2 MPPT inputs.
2. Inverters from 8kW to 12kW with 3 MPPT inputs.
Choose the configuration that suits your needs.

MODEL	Polaris-8k-T3EU	Polaris-10k-T3EU	Polaris-12k-T3EU
PV INPUT
Max. PV array power	12000Wp	15000Wp	18000 Wp
Max. input voltage		1100 V
MPp voltage range/rated input voltage		200V to 950V/600V
Min.inputvoltage/startvoltage		60V/250V
No. of independent MPPT trackers / strings per MPPT input		3/1
Max. input current per MPP tracker		16 A
Max. short-circuit current per MPP tracker		24 A
BATTERY INPUT
Battery voltage range	120V to 600V
Max. charging/discharging power	8000 W	10000 W	12000 W
Max. charging current / Max. discharging current	36 A
Rated charging current / Rated discharging current	30 A
Battery type	LiFePO4
AC OUTPUT
AC voltage range/Nominal AC voltage	270V to 480V/3/N/PE, 220/380V;230/400V;230/400V;240/415V
Rated AC grid frequency	50Hz/60Hz
AC grid frequency range	45~55 Hz / 55~65 Hz
Rated apparent power	8000 VA	10000 VA	12000 VA
Max. apparent power	8800 VA	11000 VA	13200VA
Rated grid output current (@400V)	11.6A	14.5 A	17.4 A
Max. grid output current(@400V)	12.8 A	16.0 A	19.2 A
Harmonics THDi (@ Nominal power)	<3%(ofnominal power)
AC INPUT
Rated grid voltage	3/N/PE, 220/380V;230/400V;240/415V
Rated grid frequency	50Hz/60Hz
Max. input power from grid	16000 W	20000 W	24000 W
Max. input current from grid	23.2 A	29.0 A	34.8 A
EPS OUTPUT
Nominal output voltage	3/N/PE, 220/380V;230/400V;240/415V
Nominal output frequency	50Hz/60Hz
Rated apparent power	8000 VA	10000 VA	12000 VA
Max. output apparent power@linear load	8000 VA	10000 VA	12000 VA
Peak output apparent power	2 times of rated power, 10 s
Rated Current (@400V)	11.6A	14.5 A	17.4 A
Max. switch time	<10ms
Output THDv (@ Linear load)	2%
EFFICIENCY
MPPT efficiency	99.90%
Euro efficiency / Max. efficiency	97.2 % / 98.0%	97.5%/98.2%
GENERAL DATA
Power factor at rated power / adjustable displacement	1/0.8 leading to 0.8 lagging
Dimensions (W/H/D)	545mm/478mm/205mm
Weight	26 kg
Operating temperature range	-25 °C ... +60 °C
Cooling concept	Natural convection
Degree of protection (as per IEC 60529)	IP66
Max. relative humidity	100%
Max. operating altitude	4000 m
