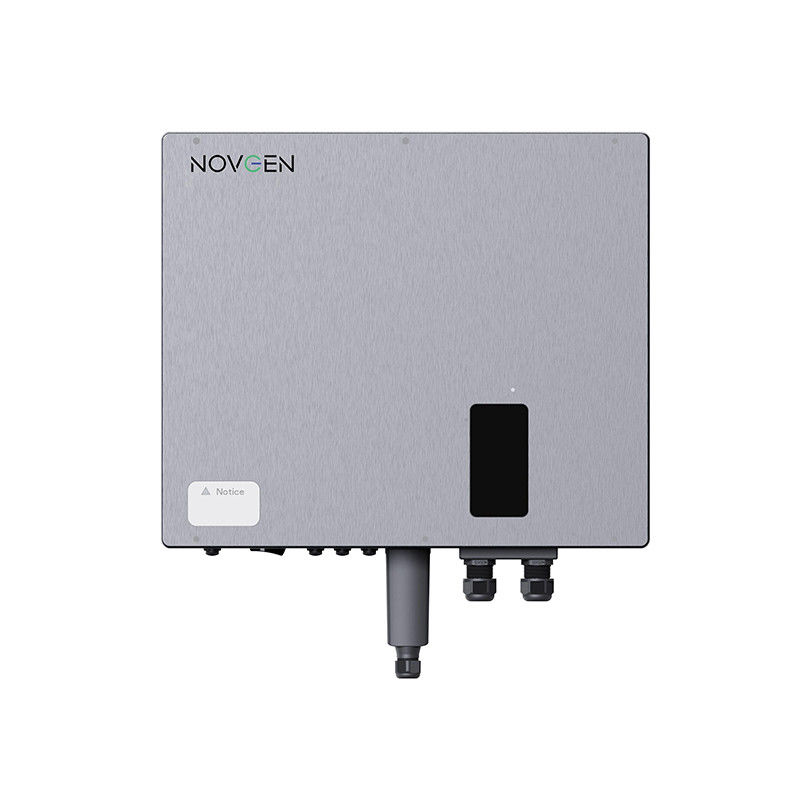

Three Phase Hybrid Solar Inverter Balcony Battery Energy Storage System

Three Phase Hybrid Solar Inverter Balcony Battery Energy Storage System
Three Phase Hybrid Solar Inverter Balcony Battery Energy Storage System

Large Image :  Three Phase Hybrid Solar Inverter Balcony Battery Energy Storage System

Product Details:
Place of Origin: China
Brand Name: NOVGEN
Certification: CE
Model Number: T3EU
Payment & Shipping Terms:
Minimum Order Quantity: Negotiation
Price: Negotiation
Packaging Details: Standard Packaging
Detailed Product Description
Max. Input Voltage: 1100 V Min. Input Voltage / Start Voltage: 60 V / 250 V
Max. Input Current Per MPP Tracker: 16 A Max. Short-circuit Current Per MPP Tracker: 24 A
Battery Voltage Range: 120 V To 600 V Battery Type: LiFePO4
Max. Switch Time: < 10 Ms Output THDv (@ Linear Load): 2%
MPPT Efficiency: 99.9 % Weight: 26 Kg
Operating Temperature Range: -25 °C~+60 °C Protection Level: IP66
Highlight:

Three Phase Hybrid Solar Inverter

,

Balcony Hybrid Solar Inverter

,

Balcony Three Phase Solar Inverter

Introducing the NOVGEN Three-Phase Hybrid Inverter - Your Gateway to a Brighter, Greener Future!



Harness the Sun's Power: Seamlessly integrating with HVS batteries, this inverter empowers you to create your very own Residential Energy Storage System (ESS). Bid farewell to grid reliance and embrace energy independence like never before.



Tailored to Your Needs: With power ratings ranging from 5kW to a robust 12kW, choose the system that perfectly suits your unique requirements.



Maximize Your Solar Potential: Customize your PV system with either 2 or 3 built-in MPPT trackers, boasting an impressive 99.9% MPPT efficiency. Maximize your energy harvest and watch those savings soar!



High-Efficiency Performance: Achieve an astounding 98.4% AC output efficiency, with a mere 3% Total Harmonic Distortion (THD). This translates to lower energy bills and a stable, reliable power supply.



Uninterrupted Power: Lightning-fast UPS function seamlessly switches power sources from the grid to the inverter in less than 10 milliseconds. Your electronics stay humming without a hiccup.



Smart Control at Your Fingertips: Effortlessly set up, commission, and monitor your power flow and usage using the NOVGEN Viewer app. Customize battery management for Depth of Discharge (DOD), Time of Use, and power settings - all from your smartphone, no matter where you are.



Safety First: Your peace of mind is paramount. Our inverter is fortified with a suite of safety features, including DC surge protection, insulation resistance detection, reverse polarity protection, ground fault monitoring, AC short circuit protection, and anti-islanding protection.



Built for Durability: Encased in an IP66-rated housing, this inverter is engineered to withstand the elements. Install it confidently outdoors, come rain or shine.



Easy Installation: Weighing a mere 26kg, a single qualified worker can effortlessly handle the installation. Our Phoenix Contact connectors ensure a hassle-free, tool-free DC connection, enhancing aesthetics and simplifying the process.



Experience the future of energy with the NOVGEN Three-Phase Hybrid Inverter - your ticket to energy independence, efficiency, and safety.

MODEL Polaris-8k-T3EU Polaris-10k-T3EU Polaris-12k-T3EU
PV INPUT
Max. PV array power 12000Wp 15000Wp 18000 Wp
Max. input voltage   1100 V
MPp voltage range/rated input voltage   200V to 950V/600V
Min.inputvoltage/startvoltage   60V/250V
No. of independent MPPT trackers / strings per MPPT input   3/1
Max. input current per MPP tracker   16 A
Max. short-circuit current per MPP tracker   24 A
BATTERY INPUT
Battery voltage range 120V to 600V
Max. charging/discharging power 8000 W 10000 W 12000 W
Max. charging current / Max. discharging current 36 A
Rated charging current / Rated discharging current 30 A
Battery type LiFePO4
AC OUTPUT
AC voltage range/Nominal AC voltage 270V to 480V/3/N/PE, 220/380V;230/400V;230/400V;240/415V
Rated AC grid frequency 50Hz/60Hz
AC grid frequency range 45~55 Hz / 55~65 Hz
Rated apparent power 8000 VA 10000 VA 12000 VA
Max. apparent power 8800 VA 11000 VA 13200VA
Rated grid output current (@400V) 11.6A 14.5 A 17.4 A
Max. grid output current(@400V) 12.8 A 16.0 A 19.2 A
Harmonics THDi (@ Nominal power) <3%(ofnominal power)
AC INPUT
Rated grid voltage 3/N/PE, 220/380V;230/400V;240/415V
Rated grid frequency 50Hz/60Hz
Max. input power from grid 16000 W 20000 W 24000 W
Max. input current from grid 23.2 A 29.0 A 34.8 A
EPS OUTPUT
Nominal output voltage 3/N/PE, 220/380V;230/400V;240/415V
Nominal output frequency 50Hz/60Hz
Rated apparent power 8000 VA 10000 VA 12000 VA
Max. output apparent power@linear load 8000 VA 10000 VA 12000 VA
Peak output apparent power 2 times of rated power, 10 s
Rated Current (@400V) 11.6A 14.5 A 17.4 A
Max. switch time <10ms
Output THDv (@ Linear load) 2%
EFFICIENCY
MPPT efficiency 99.90%
Euro efficiency / Max. efficiency 97.2 % / 98.0% 97.5%/98.2%
GENERAL DATA
Power factor at rated power / adjustable displacement 1/0.8 leading to 0.8 lagging
Dimensions (W/H/D) 545mm/478mm/205mm
Weight 26 kg
Operating temperature range -25 °C ... +60 °C
Cooling concept Natural convection
Degree of protection (as per IEC 60529) IP66
Max. relative humidity 100%
Max. operating altitude 4000 m
