Product Details:
Payment & Shipping Terms:
|
| Peak Conversion Efficiency: | 97.5% | Battery Type: | LiFePO4 |
|---|---|---|---|
| Cycle Life/Cycles (100% DOD): | 6000＋ | Max Charging Power: | 1200 W |
| Capacity: | 2400 Wh | Max. Output Power: | 1000 W |
| Operating Temperature: | -20~55℃ | Protection Class: | IP65 |
| Application: | Balcony/Garden/Wall/Roof | Service: | OEM ODM Accept |
| Warranty: | 10 Years | Weight: | 26±0.5KG |
| Highlight: | High Performance Balcony Solar System,Balcony Solar System 2400Wh,Balcony Portable Power Station For Home |
||

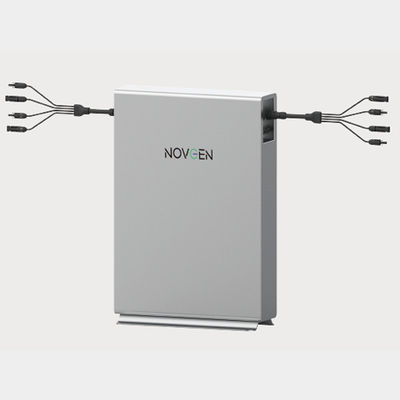

NOVB-2400 The Easy-To-Install Solution For Your Balcony Power Station
NOVB-2400 is the innovative solar solution that helps you to use clean and renewable energy. Thanks to our unique metering technology and easy installation, NOVB-2400 is the perfect choice for your home. NOVB-2400 only includes the storage unit, making it the perfect upgrade for existing balcony power plants.
FUNCTIONALITY
The sun’s energy activates the electrons in the solar panels, which then generate direct current to charge your energy storage system. As soon as NOVB-2400 recognizes that energy is needed in your home, an inverter converts the stored energy and makes it available to the devices in your home.
Why should you opt for a system with storage? With a conventional balcony power plant, surplus electricity generated in excess of household requirements is made available to the grid operator free of charge by being fed into the public grid. With NOVB-2400, you maximize the use of your solar power by storing excess energy for use during the evening hours rather than simply giving it away. This way you can save more electricity and further reduce your energy costs!
EVERYTHING YOU NEED
Your own existing panels (not included) are simply connected to the storage unit via a cable. You are supplied with everything you need for this. The storage system is then plugged into a standard socket. The solar power produced is fed into the household in the required quantity using
NOVB-2400's patented measuring technology. Any electricity that is not required is stored in NOVB-2400.
In addition to grid operation, you can also use NOVB-2400 in stand-alone mode. Thanks to the integrated socket on the side, you can then draw emergency power or provide light and entertainment away from a power grid.
ALL THE ADVANTAGES OF STORAGE UNITS FOR MINI-PV SYSTEMS
OPTIMAL USE OF SOLAR ENERGY
Since the surplus electricity is stored, the solar energy can also be used at night. This maximizes the self-consumption rate and reduces the purchase of grid electricity at expensive tariffs.
EASY INSTALLATION
The NOVGEN app
The NOVGEN app is specially designed to allow you to seamlessly monitor and control your NOVGEN system wherever you are. This free application allows you to configure NOVGEN exactly how you want it. It offers you a variety of functions, including displaying the current energy production of your solar panels, an overview of the amount of solar energy currently flowing into your household and the option to set a minimum charge level for your storage system.
| BATTERY | NOVB-2400 |
| PV INPUT | DC | |
| Input MPPT Voltage Range/V | 18-60V |
| Max Input Current (Per MPPT) | 15A |
| BATTERY DATA | |
| Battery Type | LiFePO4 |
| Cycle Life / Cycles | 6000+ |
| Capacity / Wh | 2400wh |
| BATTERY OUTPUT TO MICROINVERTER | |
| Max. Output Power/W | 1000W |
| Max. Output Current/ A | 13.5A |
| GENERAL DATA | |
| Operating Temperature /°c | -20~55°C |
| Dimension (W/H/D)/mm | 400x567x102 |
| Protection Class | IP65 |
| Weight / kg | 26±0.5KG |
