| Max. Input Voltage: | 1100 V | Min. Input Voltage / Start Voltage: | 60 V / 250 V |
|---|---|---|---|
| Max. Input Current Per MPP Tracker: | 16 A | Max. Short-circuit Current Per MPP Tracker: | 24 A |
| Battery Voltage Range: | 120 V To 600 V | Battery Type: | LiFePO4 |
| Max. Switch Time: | < 10 Ms | Output THDv (@ Linear Load): | 2% |
| MPPT Efficiency: | 99.9 % | Weight: | 26 Kg |
| Operating Temperature Range: | -25 °C~+60 °C | Protection Level: | IP66 |
| Highlight: | OEM Hybrid Inverter,Balcony Hybrid Inverter |
||

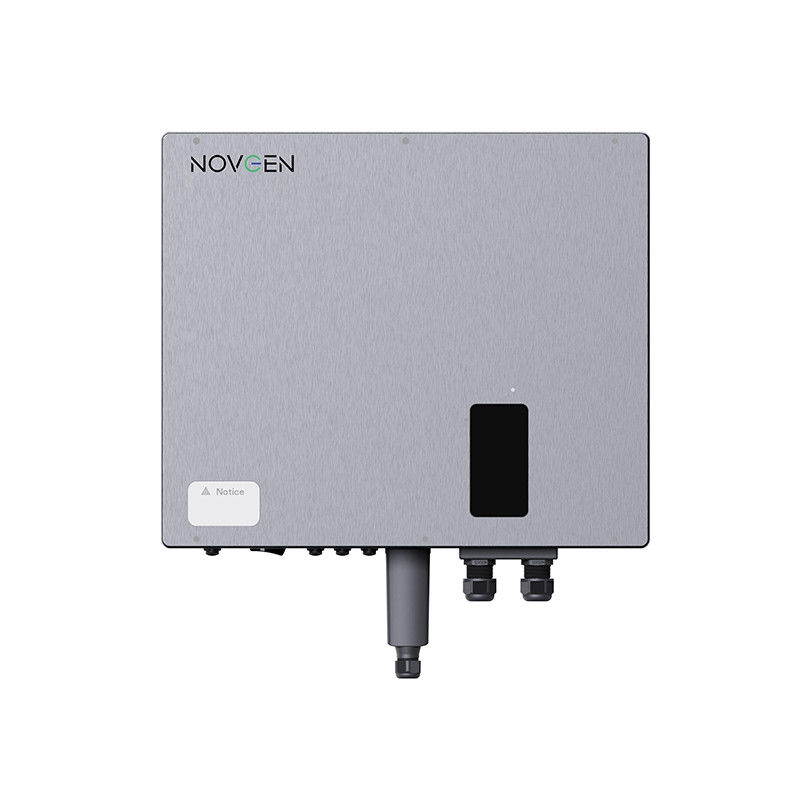

Three Phase Hybrid Inverter Balcony Solar Energy Storage Battery Energy Storage System
EASY-TO-INSTALL
Phoenix Contact connectors for reliable tool-free DC connection
Compact wall mount design
Simple battery connection for faster installation
Compatible with our high voltage batteries
RELIABLE
Up to 150 % PV array oversizing for higher yields
100% unbalanced three phase AC output
Improved generation under non-ideal conditions
UPS level switching time < 10 ms
IP66 rated design for outdoor use
USER-FRIENDLY
Setup, commissioning and monitoring via the Novgen app
Intelligent work modes and customizable battery management for DOD / Time of Use/Power setting
Max. 20 A input current,ideal for bifacial and large area PV modules
