Product Details:
Payment & Shipping Terms:
|
| Weight: | 3.1 Kg | Protection Level: | IP67 |
|---|---|---|---|
| Connector: | MC4 Compatible | Rated Peak Power (Pmax): | 200 W |
| Operating Temperature: | -40°C To 85°C | Efficiency: | High |
| Shape: | Rectangle | Usage: | Outdoor |
| Installation: | Easy | Application: | Balcony |
| Highlight: | Portable Power Station Solar Panel 210W,Balcony Portable Power Station Solar Panel |
||

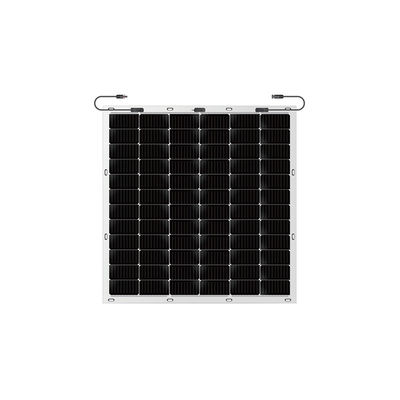

Lightweight Design 200W Balcony Solar Panel for Solar Energy Storage Systems
The 200W Solar Panel, renowned for its exceptional lightweight design, is specifically tailored for balcony solar systems. Its versatility allows for effortless mounting on balcony railings, roofs, or floors, with brackets included for your convenience.
PV PANEL ULTRA LIGHT 200W
ELECTRICAL SPECIFICATION
| Rated Peak Power | 200W |
| Open Circuit Voltage | 37.5V |
| Short Circuit Current | 6.38A |
| Maximum Power Voltage | 32.9V |
| Maximum Power Current | 6.08A |
| Operating Temperature | -40~85℃ |
| Certification | CE, REACH, WEEE, ROHS, IP |
MECHANICAL SPECIFICATIONS
| Dimension (WxHxD) | 1154x899x20 mm |
| Solar Cell Type | Mono-crystalline TOPCon |
| Weight(Per Panel) | 3.1 kg |
| Color | Black |
| Number of Cell | 54 ( 6 x 9 ) |
Download:
NOVGEN Technical Datasheet English.pdf
NOVGEN Technical Datasheet Deutsch.pdf
