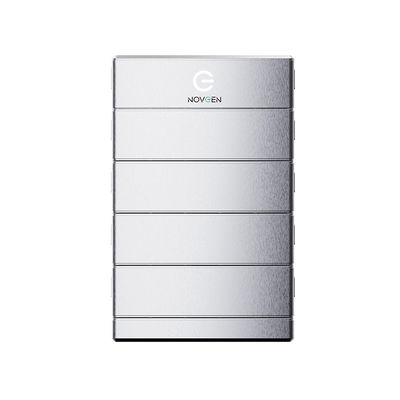

Energy Storage High Voltage Battery 2.56kWh Residential Solar Battery Storage

I'm Online Chat Now

Energy Storage High Voltage Battery 2.56kWh Residential Solar Battery Storage

Energy Storage High Voltage Battery 2.56kWh Residential Solar Battery Storage
Energy Storage High Voltage Battery 2.56kWh Residential Solar Battery Storage

Large Image :  Energy Storage High Voltage Battery 2.56kWh Residential Solar Battery Storage

Product Details:
Place of Origin: China
Brand Name: NOVGEN
Model Number: Altair HVS Battery - 2.56 kWh
Payment & Shipping Terms:
Minimum Order Quantity: Negotiation
Price: Negotiation
Packaging Details: Standard Packaging
Detailed Product Description
Certification: CE Battery Type: LiFePo4
Battery Module Weight: 29kg Application: Indoor/Outdoor
Operating Temperature Range: Charge: 0℃ ~ 55℃ Discharge: -20℃ ~ 55℃ Protection Level: IP65
Communication: CAN Life Cycle: 6000 Times
Compatible Inverters: Novgen, Megarevo, Solplanet, Growatt DOD: 100 %
Warranty: 10 Years

high voltage battery 2.56kwh


2.56kwh residential solar battery storage


energy storage high voltage battery

Altair HVS battery is the energy storage pack for the residential ESS. It is constituted by modular battery with rated 2.56kWh capacity. The battery capacity range is from 7.68kWh to 25.6kWh, which fits different scenario.


Unlock the Power of Savings:

The Altair HVS battery is your key to optimizing residential Energy Storage Systems (ESS). Harness solar energy during the day and release it when you need it most. Plus, take control of your energy costs by purchasing electricity during off-peak hours and effortlessly releasing it during peak demand. Say goodbye to soaring utility bills and hello to eco-friendly living!


Modular Marvel:

Altair HVS is the ultimate modular battery designed exclusively for residential energy storage systems. Each battery module boasts an impressive 2.56 kWh capacity. And the best part? The Altair system is expandable up to a whopping 25.6 kWh! With just 3 modules (equivalent to 7.68 kWh), you can power up your home with ease. Installation is a breeze, and only one qualified installer is needed.


Safety Meets Innovation:

Rest easy with Altair batteries. We've equipped them with top-tier LiFePO4 battery cells that are second to none in safety and durability. With a lifespan of up to 6000 cycles at 90% Depth of Discharge (DOD), they're built to last. Our state-of-the-art multi-layered battery management system incorporates multiple layers of protection, including safeguards against overvoltage, overcurrent, short circuits, and temperature fluctuations. Plus, for your peace of mind, each battery module features an integrated aerosol protection function, acting as your first-line fire extinguisher.


Weather Any Storm:

With Altair's robust IP65 protection rating, you can install it in various locations, indoors or outdoors, come rain or shine. This battery is your all-weather partner, ensuring your energy needs are met, no matter the conditions.


Wireless connection:

Say farewell to the days of tedious manual monitoring! Altair HVS Battery has transformed the way you manage energy. With our state-of-the-art built-in communication protocol (CAN), effortlessly keep tabs on your battery's State of Charge (SOC) from anywhere, at any time, using the user-friendly Novgen app. It's a revolution in energy management, simplified and at your fingertips!


Experience the future of energy storage with Altair HVS - Your Gateway to Savings, Sustainability, and Safety! Don't miss out on this opportunity to transform your home into an energy-efficient powerhouse.


BATTERY MODULE Altair HVS Battery-2.56 kWh
Cell Type LiFePo4
Module Quantity 3 4 5 6
Nominal Energy 1 7.68 kwh 10.24 kwh 12.8 kwh 15.36 kWh
Usable Energy 2 6.91 kwh 9.21 kwh 11.52 kWh 13.82 kWh
Nominal Voltage 153.6V 204.8V 256V 307.2V
Operating Voltage 144V-172.8V 192V-230.4V 240V-288V 288V-345.6V
Nominal charging /Discharging Current 25 A
Max. Charging /Discharging Current 40 A
Dimensions(W/H/D) 525x650x370mm 525x790x370mm 525x930x370mm 525x1070x370mm
Weight 110 kg 140 kg 170 kg 200 kg
Battery Module Weight 31kg
Installation Location Indoor / Outdoor
Mounting Method Floor mounted
Operating Temperature Range Charge:0c~55°c | Discharge:-20°c~55°C
Storage Temperature -20°C~45°C
RangeCooling Concept Natural convection
Degree of Protection IP65
Relative Humidity 5%~95 %, non-condensing
Communication CAN
Certification IEC 62619/EN 61000|IEC62040/UN38.3
Life Cycle 6000 times
DOD 90%
Compatible lnverters Novgen, Megarevo, Solplanet, Growatt



NOVGEN Technical Datasheet English.pdf

NOVGEN Technical Datasheet Deutsch.pdf
